Multímetro digital VR para el Explorador. More...

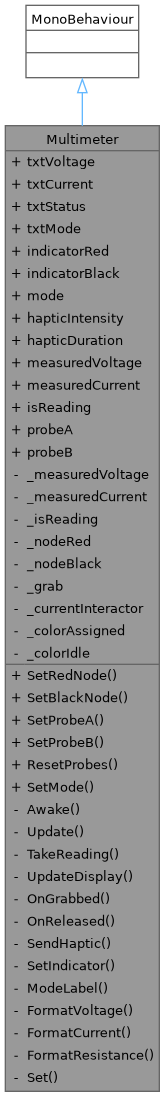

Inheritance diagram for Multimeter:

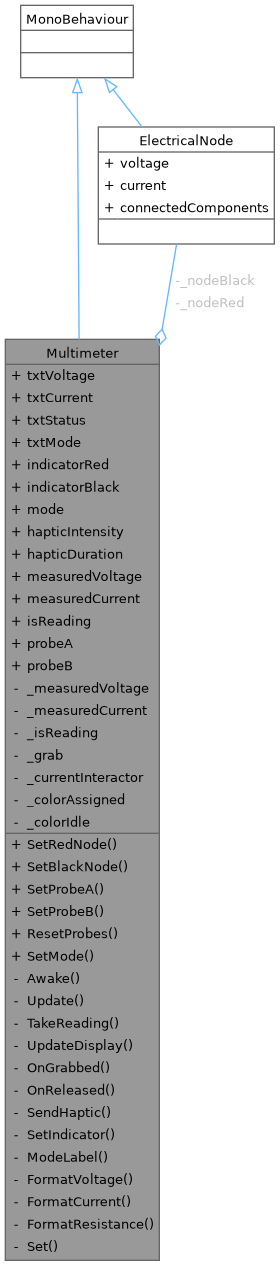

Collaboration diagram for Multimeter:

Public Member Functions
void	SetRedNode (ElectricalNode node)
	Asigna el nodo a la punta roja (mano derecha).
void	SetBlackNode (ElectricalNode node)
	Asigna el nodo a la punta negra (mano izquierda).
void	SetProbeA (ElectricalNode node)
	Alias de SetProbeA → SetRedNode (usado por PlayerInteraction).
void	SetProbeB (ElectricalNode node)
	Alias de SetProbeB → SetBlackNode (usado por PlayerInteraction).
void	ResetProbes ()
void	SetMode (MultimeterMode newMode)
	Cambia el modo de medición.

Public Attributes
TMP_Text	txtVoltage
TMP_Text	txtCurrent
TMP_Text	txtStatus
TMP_Text	txtMode
Renderer	indicatorRed
Renderer	indicatorBlack
MultimeterMode	mode = MultimeterMode.DCVoltage
float	hapticIntensity = 0.3f
float	hapticDuration = 0.08f

Properties
float	measuredVoltage `[get]`
float	measuredCurrent `[get]`
bool	isReading `[get]`
ElectricalNode	probeA `[get]`
	Reinicia ambas puntas (llamado por GameManager al cargar nivel).
ElectricalNode	probeB `[get]`
	Alias de probeB → _nodeBlack (compatibilidad con código existente).

Private Member Functions
void	Awake ()
void	Update ()
void	TakeReading ()
void	UpdateDisplay ()
void	OnGrabbed (SelectEnterEventArgs args)
void	OnReleased (SelectExitEventArgs args)
void	SendHaptic ()
void	SetIndicator (Renderer r, bool assigned)
string	ModeLabel ()

Static Private Member Functions
static string	FormatVoltage (float v)
static string	FormatCurrent (float i)
static string	FormatResistance (float r)
static void	Set (TMP_Text t, string s)

Private Attributes
float	_measuredVoltage
float	_measuredCurrent
bool	_isReading
ElectricalNode	_nodeRed
ElectricalNode	_nodeBlack
XRGrabInteractable	_grab
UnityEngine.XR.Interaction.Toolkit.Interactors.IXRSelectInteractor	_currentInteractor

Static Private Attributes
static readonly Color	_colorAssigned = new Color(0.2f, 0.85f, 0.3f)
static readonly Color	_colorIdle = new Color(0.4f, 0.4f, 0.4f)

Detailed Description

Multímetro digital VR para el Explorador.

FLUJO:

Explorador agarra el multímetro (XRGrabInteractable).
Apunta el controlador DERECHO al nodo a medir → gatillo → punta roja asignada.
Apunta el controlador IZQUIERDO al nodo de referencia → gatillo → punta negra.
El display muestra voltaje y corriente en tiempo real.
El Técnico lee los mismos valores en TechnicianUIController mediante las propiedades measuredVoltage / measuredCurrent.

JERARQUÍA EN UNITY: Multimeter_VR ← este script + XRGrabInteractable + Rigidbody ├─ Body ← Cube (0.06 × 0.12 × 0.02), color gris oscuro ├─ Indicator_Red ← Sphere (0.008), color rojo — se ilumina al asignar ├─ Indicator_Black ← Sphere (0.008), color negro — se ilumina al asignar └─ Screen_Canvas ← Canvas WorldSpace, Scale 0.001 ├─ TMP_Voltage ← "9.00 V" ├─ TMP_Current ← "15.3 mA" ├─ TMP_Status ← "MIDIENDO" / "SIN CONTACTO" └─ TMP_Mode ← "DC VOLTAGE"

NO necesita MultimeterProbe.cs ni CircuitNode.cs. Trabaja directamente con ElectricalNode asignado por NodeInteractable.

Member Function Documentation

◆ Awake()

void Multimeter.Awake ( )

private

◆ FormatCurrent()

string Multimeter.FormatCurrent ( float i )

staticprivate

◆ FormatResistance()

string Multimeter.FormatResistance ( float r )

staticprivate

◆ FormatVoltage()

string Multimeter.FormatVoltage ( float v )

staticprivate

◆ ModeLabel()

string Multimeter.ModeLabel ( )

private

◆ OnGrabbed()

void Multimeter.OnGrabbed ( SelectEnterEventArgs args )

private

◆ OnReleased()

void Multimeter.OnReleased ( SelectExitEventArgs args )

private

◆ ResetProbes()

void Multimeter.ResetProbes ( )

◆ SendHaptic()

void Multimeter.SendHaptic ( )

private

◆ Set()

void Multimeter.Set	(	TMP_Text	t,
		string	s )

staticprivate

◆ SetBlackNode()

void Multimeter.SetBlackNode ( ElectricalNode node )

Asigna el nodo a la punta negra (mano izquierda).

◆ SetIndicator()

void Multimeter.SetIndicator	(	Renderer	r,
		bool	assigned )

private

◆ SetMode()

void Multimeter.SetMode ( MultimeterMode newMode )

Cambia el modo de medición.

◆ SetProbeA()

void Multimeter.SetProbeA ( ElectricalNode node )

Alias de SetProbeA → SetRedNode (usado por PlayerInteraction).

◆ SetProbeB()

void Multimeter.SetProbeB ( ElectricalNode node )

Alias de SetProbeB → SetBlackNode (usado por PlayerInteraction).

◆ SetRedNode()

void Multimeter.SetRedNode ( ElectricalNode node )

Asigna el nodo a la punta roja (mano derecha).

◆ TakeReading()

void Multimeter.TakeReading ( )

private

◆ Update()

void Multimeter.Update ( )

private

◆ UpdateDisplay()

void Multimeter.UpdateDisplay ( )

private

Member Data Documentation

◆ _colorAssigned

readonly Color Multimeter._colorAssigned = new Color(0.2f, 0.85f, 0.3f)

staticprivate

◆ _colorIdle

readonly Color Multimeter._colorIdle = new Color(0.4f, 0.4f, 0.4f)

staticprivate

◆ _currentInteractor

UnityEngine.XR.Interaction.Toolkit.Interactors.IXRSelectInteractor Multimeter._currentInteractor

private

◆ _grab

XRGrabInteractable Multimeter._grab

private

◆ _isReading

bool Multimeter._isReading

private

◆ _measuredCurrent

float Multimeter._measuredCurrent

private

◆ _measuredVoltage

float Multimeter._measuredVoltage

private

◆ _nodeBlack

ElectricalNode Multimeter._nodeBlack

private

◆ _nodeRed

ElectricalNode Multimeter._nodeRed

private

◆ hapticDuration

float Multimeter.hapticDuration = 0.08f

◆ hapticIntensity

float Multimeter.hapticIntensity = 0.3f

◆ indicatorBlack

Renderer Multimeter.indicatorBlack

◆ indicatorRed

Renderer Multimeter.indicatorRed

◆ mode

MultimeterMode Multimeter.mode = MultimeterMode.DCVoltage

◆ txtCurrent

TMP_Text Multimeter.txtCurrent

◆ txtMode

TMP_Text Multimeter.txtMode

◆ txtStatus

TMP_Text Multimeter.txtStatus

◆ txtVoltage

TMP_Text Multimeter.txtVoltage

Property Documentation

◆ isReading

bool Multimeter.isReading

get

◆ measuredCurrent

float Multimeter.measuredCurrent

get

◆ measuredVoltage

float Multimeter.measuredVoltage

get

◆ probeA

ElectricalNode Multimeter.probeA

get

Reinicia ambas puntas (llamado por GameManager al cargar nivel).

Alias de probeA → _nodeRed (compatibilidad con código existente).

◆ probeB

ElectricalNode Multimeter.probeB

get

Alias de probeB → _nodeBlack (compatibilidad con código existente).

The documentation for this class was generated from the following file:

Assets/Scripts/Interaction/Multimeter.cs
