Controlador principal del juego. Gestiona los 4 retos del Serious Game VR. Usa eventos para comunicarse con UI y otros sistemas (sin acoplamiento directo). More...

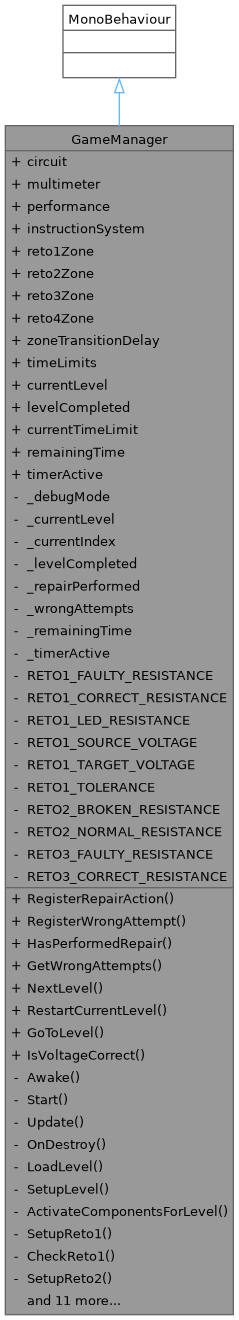

Inheritance diagram for GameManager:

Collaboration diagram for GameManager:

Public Member Functions
void	RegisterRepairAction ()
	Registra que se realizó una reparación y resimula el circuito.
void	RegisterWrongAttempt (string reason="")
	Registra un intento incorrecto del Técnico.
bool	HasPerformedRepair ()
int	GetWrongAttempts ()
void	NextLevel ()
void	RestartCurrentLevel ()
	Reinicia el reto actual desde cero (conserva el índice).
void	GoToLevel (int index)
	Salta directamente a un reto. Solo funciona con _debugMode activo.
bool	IsVoltageCorrect ()

Public Attributes
CircuitManager	circuit
Multimeter	multimeter
PerformanceTracker	performance
InstructionSystem	instructionSystem
GameObject	reto1Zone
GameObject	reto2Zone
GameObject	reto3Zone
GameObject	reto4Zone
float	zoneTransitionDelay = 3f
float[]	timeLimits = { 480f, 600f, 720f, 900f }

Properties
LevelType	currentLevel `[get]`
bool	levelCompleted `[get]`
float	currentTimeLimit `[get]`
float	remainingTime `[get]`
bool	timerActive `[get]`

Events
static Action< LevelType >	OnLevelLoaded
static Action< LevelType, bool >	OnLevelCompleted
static Action< string >	OnFaultDetected
static Action	OnGameCompleted
static Action< float >	OnTimerTick
static Action< LevelType >	OnTimerExpired
static Action< int >	OnZoneActivated
	Zona activada: índice 0-3. Útil para UI y efectos de transición.
static Action< LevelType, bool >	OnZoneTransitionStart
	Disparado justo antes de cargar el siguiente reto.

Private Member Functions
void	Awake ()
void	Start ()
void	Update ()
void	OnDestroy ()
void	LoadLevel (int index)
void	SetupLevel ()
void	ActivateComponentsForLevel (LevelType level)
	Activa solo los componentes necesarios para el reto actual. Desactiva los demás para evitar que interfieran con la simulación.
void	SetupReto1 ()
void	CheckReto1 ()
void	SetupReto2 ()
void	CheckReto2 ()
void	SetupReto3 ()
void	SetupMixedNodeVoltages ()
void	CheckReto3 ()
void	SetupReto4 ()
void	CheckReto4 ()
void	CheckWinCondition ()
	Se llama automáticamente cada vez que el circuito cambia.
void	CompleteLevel (bool success)
IEnumerator	TransitionToNextLevel ()
void	CompleteGame ()
void	ValidateZones ()

Private Attributes
bool	_debugMode = false
LevelType	_currentLevel = LevelType.OhmLaw
int	_currentIndex = 0
bool	_levelCompleted = false
bool	_repairPerformed = false
int	_wrongAttempts = 0
float	_remainingTime = 0f
bool	_timerActive = false

Static Private Attributes
const float	RETO1_FAULTY_RESISTANCE = 10f
const float	RETO1_CORRECT_RESISTANCE = 100f
const float	RETO1_LED_RESISTANCE = 50f
const float	RETO1_SOURCE_VOLTAGE = 9f
const float	RETO1_TARGET_VOLTAGE = 9f
const float	RETO1_TOLERANCE = 0.5f
const float	RETO2_BROKEN_RESISTANCE = 9999f
const float	RETO2_NORMAL_RESISTANCE = 50f
const float	RETO3_FAULTY_RESISTANCE = 470f
const float	RETO3_CORRECT_RESISTANCE = 220f

Detailed Description

Controlador principal del juego. Gestiona los 4 retos del Serious Game VR. Usa eventos para comunicarse con UI y otros sistemas (sin acoplamiento directo).

Niveles: 1) Ohm's Law: Circuito serie con resistencia defectuosa. 2) Parallel: Circuito paralelo con una rama abierta. 3) Mixed: Circuito mixto con LED y capacitor con polaridad invertida + resistencia errónea. 4) Arduino: Sensor conectado al pin incorrecto + buzzer sin resistencia + cable suelto.

Member Function Documentation

◆ ActivateComponentsForLevel()

void GameManager.ActivateComponentsForLevel ( LevelType level )

private

Activa solo los componentes necesarios para el reto actual. Desactiva los demás para evitar que interfieran con la simulación.

◆ Awake()

void GameManager.Awake ( )

private

◆ CheckReto1()

void GameManager.CheckReto1 ( )

private

◆ CheckReto2()

void GameManager.CheckReto2 ( )

private

◆ CheckReto3()

void GameManager.CheckReto3 ( )

private

◆ CheckReto4()

void GameManager.CheckReto4 ( )

private

◆ CheckWinCondition()

void GameManager.CheckWinCondition ( )

private

Se llama automáticamente cada vez que el circuito cambia.

◆ CompleteGame()

void GameManager.CompleteGame ( )

private

◆ CompleteLevel()

void GameManager.CompleteLevel ( bool success )

private

◆ GetWrongAttempts()

int GameManager.GetWrongAttempts ( )

◆ GoToLevel()

void GameManager.GoToLevel ( int index )

Salta directamente a un reto. Solo funciona con _debugMode activo.

◆ HasPerformedRepair()

bool GameManager.HasPerformedRepair ( )

◆ IsVoltageCorrect()

bool GameManager.IsVoltageCorrect ( )

◆ LoadLevel()

void GameManager.LoadLevel ( int index )

private

◆ NextLevel()

void GameManager.NextLevel ( )

◆ OnDestroy()

void GameManager.OnDestroy ( )

private

◆ RegisterRepairAction()

void GameManager.RegisterRepairAction ( )

Registra que se realizó una reparación y resimula el circuito.

◆ RegisterWrongAttempt()

void GameManager.RegisterWrongAttempt ( string reason = "" )

Registra un intento incorrecto del Técnico.

◆ RestartCurrentLevel()

void GameManager.RestartCurrentLevel ( )

Reinicia el reto actual desde cero (conserva el índice).

◆ SetupLevel()

void GameManager.SetupLevel ( )

private

◆ SetupMixedNodeVoltages()

void GameManager.SetupMixedNodeVoltages ( )

private

◆ SetupReto1()

void GameManager.SetupReto1 ( )

private

◆ SetupReto2()

void GameManager.SetupReto2 ( )

private

◆ SetupReto3()

void GameManager.SetupReto3 ( )

private

◆ SetupReto4()

void GameManager.SetupReto4 ( )

private

◆ Start()

void GameManager.Start ( )

private

◆ TransitionToNextLevel()

IEnumerator GameManager.TransitionToNextLevel ( )

private

◆ Update()

void GameManager.Update ( )

private

◆ ValidateZones()

void GameManager.ValidateZones ( )

private

Member Data Documentation

◆ _currentIndex

int GameManager._currentIndex = 0

private

◆ _currentLevel

LevelType GameManager._currentLevel = LevelType.OhmLaw

private

◆ _debugMode

bool GameManager._debugMode = false

private

◆ _levelCompleted

bool GameManager._levelCompleted = false

private

◆ _remainingTime

float GameManager._remainingTime = 0f

private

◆ _repairPerformed

bool GameManager._repairPerformed = false

private

◆ _timerActive

bool GameManager._timerActive = false

private

◆ _wrongAttempts

int GameManager._wrongAttempts = 0

private

◆ circuit

CircuitManager GameManager.circuit

◆ instructionSystem

InstructionSystem GameManager.instructionSystem

◆ multimeter

Multimeter GameManager.multimeter

◆ performance

PerformanceTracker GameManager.performance

◆ RETO1_CORRECT_RESISTANCE

const float GameManager.RETO1_CORRECT_RESISTANCE = 100f

staticprivate

◆ RETO1_FAULTY_RESISTANCE

const float GameManager.RETO1_FAULTY_RESISTANCE = 10f

staticprivate

◆ RETO1_LED_RESISTANCE

const float GameManager.RETO1_LED_RESISTANCE = 50f

staticprivate

◆ RETO1_SOURCE_VOLTAGE

const float GameManager.RETO1_SOURCE_VOLTAGE = 9f

staticprivate

◆ RETO1_TARGET_VOLTAGE

const float GameManager.RETO1_TARGET_VOLTAGE = 9f

staticprivate

◆ RETO1_TOLERANCE

const float GameManager.RETO1_TOLERANCE = 0.5f

staticprivate

◆ reto1Zone

GameObject GameManager.reto1Zone

◆ RETO2_BROKEN_RESISTANCE

const float GameManager.RETO2_BROKEN_RESISTANCE = 9999f

staticprivate

◆ RETO2_NORMAL_RESISTANCE

const float GameManager.RETO2_NORMAL_RESISTANCE = 50f

staticprivate

◆ reto2Zone

GameObject GameManager.reto2Zone

◆ RETO3_CORRECT_RESISTANCE

const float GameManager.RETO3_CORRECT_RESISTANCE = 220f

staticprivate

◆ RETO3_FAULTY_RESISTANCE

const float GameManager.RETO3_FAULTY_RESISTANCE = 470f

staticprivate

◆ reto3Zone

GameObject GameManager.reto3Zone

◆ reto4Zone

GameObject GameManager.reto4Zone

◆ timeLimits

float [] GameManager.timeLimits = { 480f, 600f, 720f, 900f }

◆ zoneTransitionDelay

float GameManager.zoneTransitionDelay = 3f

Property Documentation

◆ currentLevel

LevelType GameManager.currentLevel

get

◆ currentTimeLimit

float GameManager.currentTimeLimit

get

◆ levelCompleted

bool GameManager.levelCompleted

get

◆ remainingTime

float GameManager.remainingTime

get

◆ timerActive

bool GameManager.timerActive

get

Event Documentation

◆ OnFaultDetected

Action<string> GameManager.OnFaultDetected

static

◆ OnGameCompleted

Action GameManager.OnGameCompleted

static

◆ OnLevelCompleted

Action<LevelType, bool> GameManager.OnLevelCompleted

static

◆ OnLevelLoaded

Action<LevelType> GameManager.OnLevelLoaded

static

◆ OnTimerExpired

Action<LevelType> GameManager.OnTimerExpired

static

◆ OnTimerTick

Action<float> GameManager.OnTimerTick

static

◆ OnZoneActivated

Action<int> GameManager.OnZoneActivated

static

Zona activada: índice 0-3. Útil para UI y efectos de transición.

◆ OnZoneTransitionStart

Action<LevelType, bool> GameManager.OnZoneTransitionStart

static

Disparado justo antes de cargar el siguiente reto.

The documentation for this class was generated from the following file:

Assets/Scripts/Gameplay/GameManager.cs
